Industrial Biomass Boilers - Heating Medium

Warm Water & Hot Water Boilers

A warm and hot water boiler converts chemical energy into thermal energy and then mechanical energy. Combustible materials are burned and energy is stored in the boiler in the form of pressure and heat.

Warm and hot water boilers have a relatively low capacity. The operating pressure has no influence on the distinction between hot and cold water. Warm Water systems need any annual operational checks by TÜV or others.

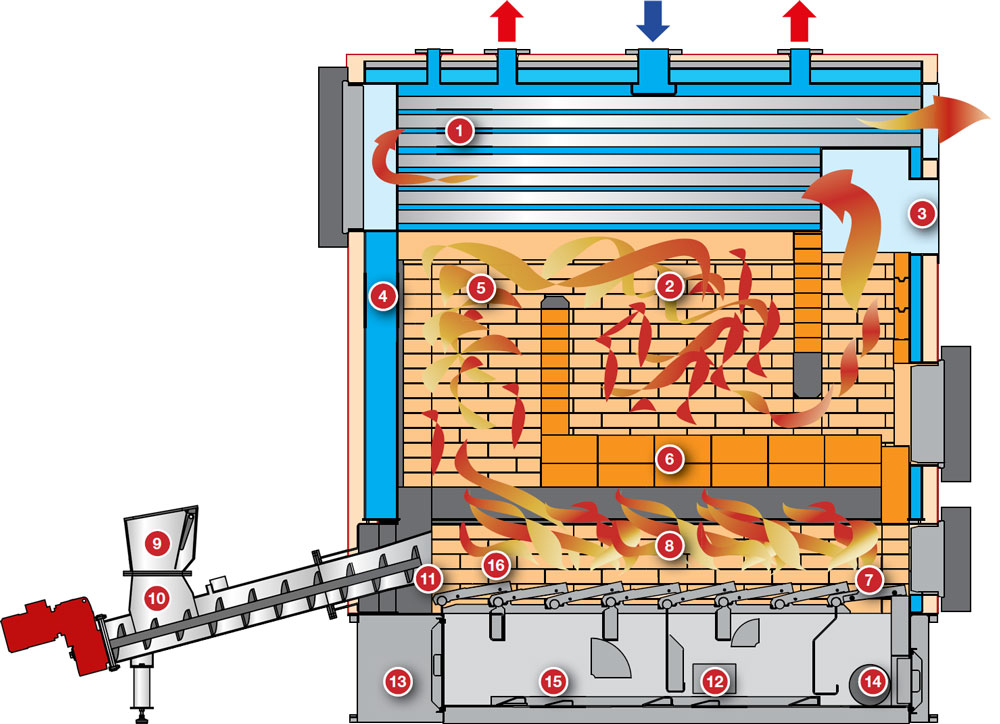

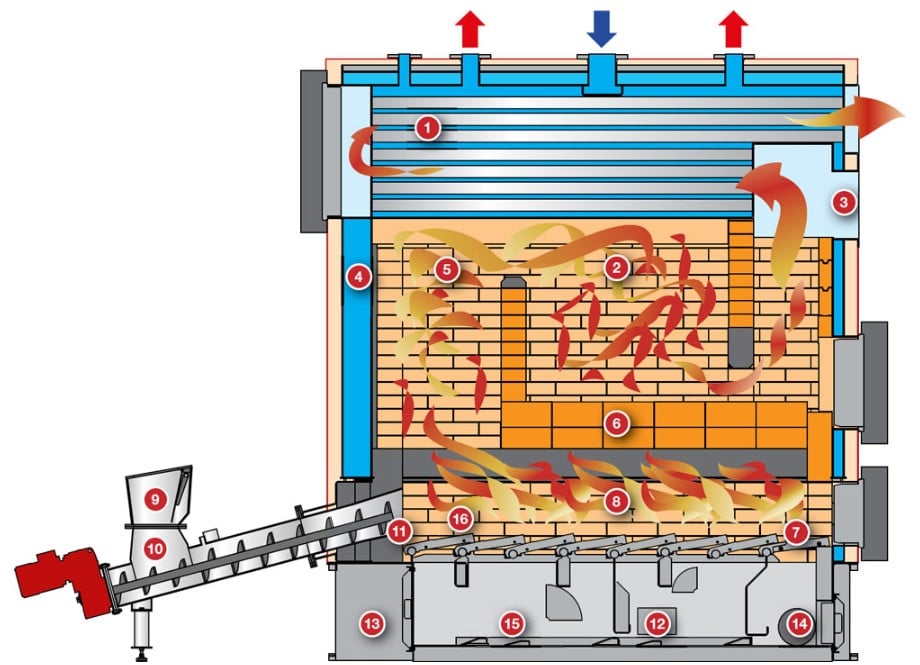

1. Boiler fire tube heat exchanger
2. Refractory walls
3. Heat exchanger cleaning
4. Water-cooled boiler jacket
5. Secondary air supply
6. Radiant refractory arch
7. Grate screen
8. Combustion chamber
9. Anti-burnback provision
10. Fuel feed stoker system
11. Moving grate
12. Primary air supply
13. Access door for servicing
14. Ash auger
15. Bottom ash extraction system

Hot Air Generator

A low-cost solution in the form of air-to-air heat exchangers for indirect drying or combustion chambers for direct drying applications.

1. Water-cooled boiler jackets
2. Flame tube
3. Boiler tubes
4. Cleaning door
5. Turning chamber
6. Air-to-air heat exchanger
7. Exhaust gas outlet
8. Exhaust gas outlet
9. Fresh air outlet
10. Combustion unit
11. Feeding system
12. Fresh air pre-heating

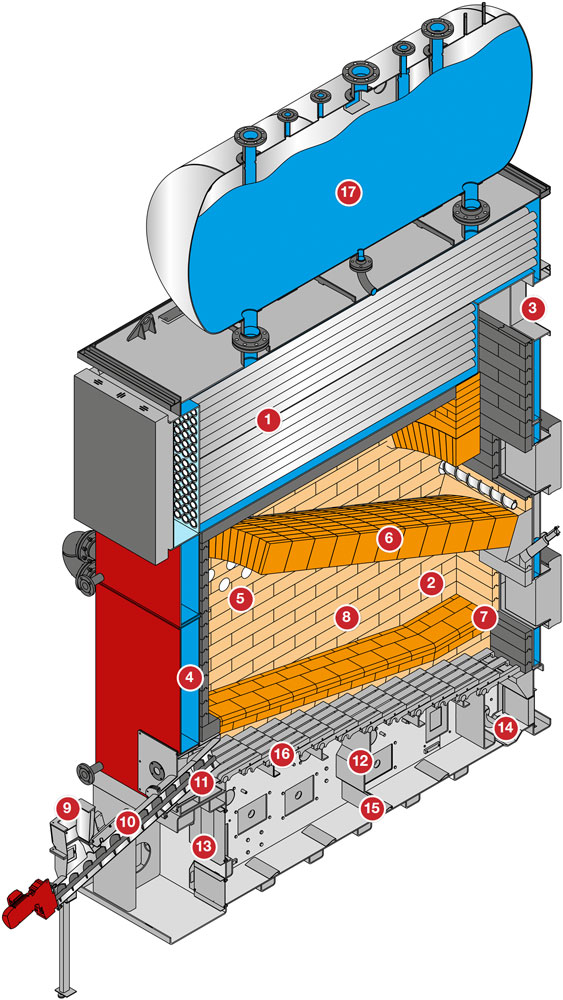

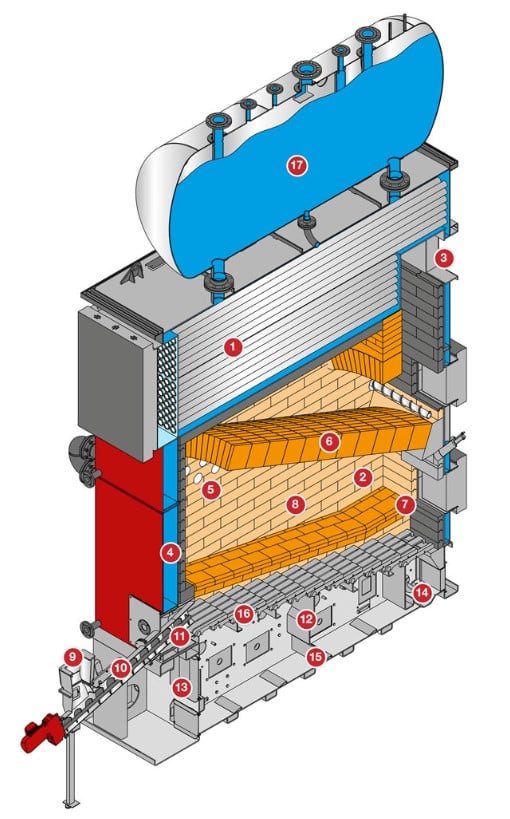

Steam Boiler

1. Boiler tubes
2. Refractory
3. Heat exchanger cleaning
4. Water-cooled boiler jacket
5. Secondary air supply
6. Radiation arch
7. Grate screen
8. Combustion chamber
9. Anti-burnback provisions
10. Infeed
11. Moving grate boiler
12. Primary air supply
13. Industrial quality
14. Ash auger
15. Ash scraper
16. Grate element
17. Steam dome (external or integrated)
