Packaged Plant Rooms

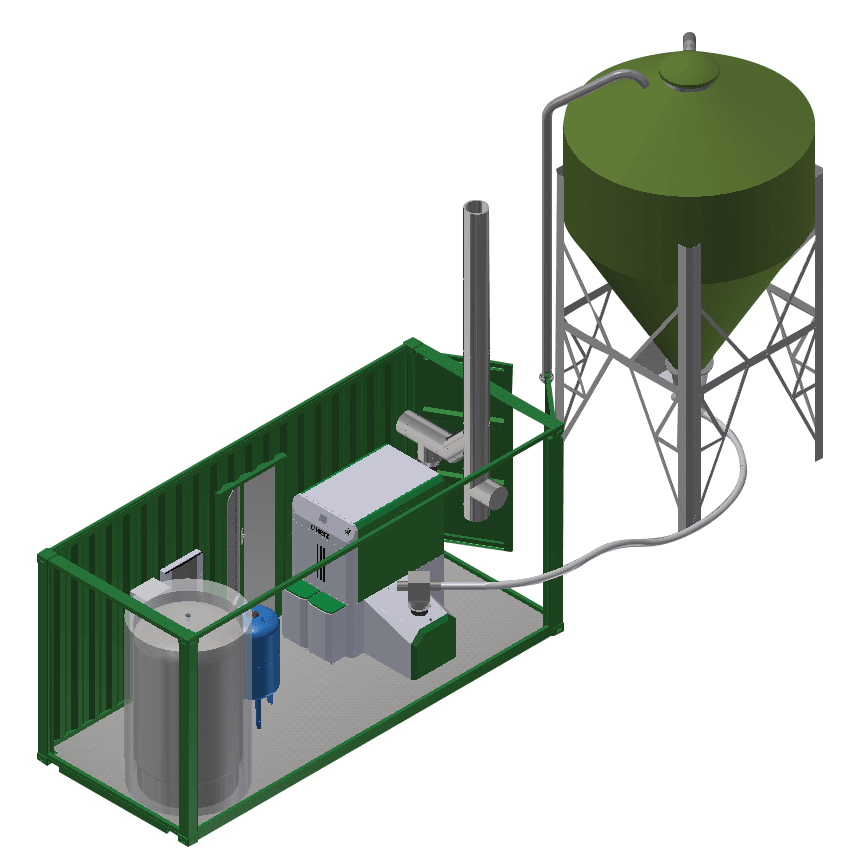

Trade Pod

A perfect solution for the agricultural trade, warehousing industry and business parks / industrial estates, The Trade Pod provides a cost-effective packaged plant room option.

The 199kW Herz biomass boiler is perfectly sized for a range of applications and to benefit from the highest RHI tariffs. Created to be used on sites with limited space, there are no frills or alternatives, the only option is the inclusion of a fuel store as required.

trade-pod-20ft-hi-cube-container
Technical Information
  • Dimensions
  • Metal shipping container design 20’ (6 x 2.4 x H2.9m
  • Colour
  • Juniper green as standard
Technical Information

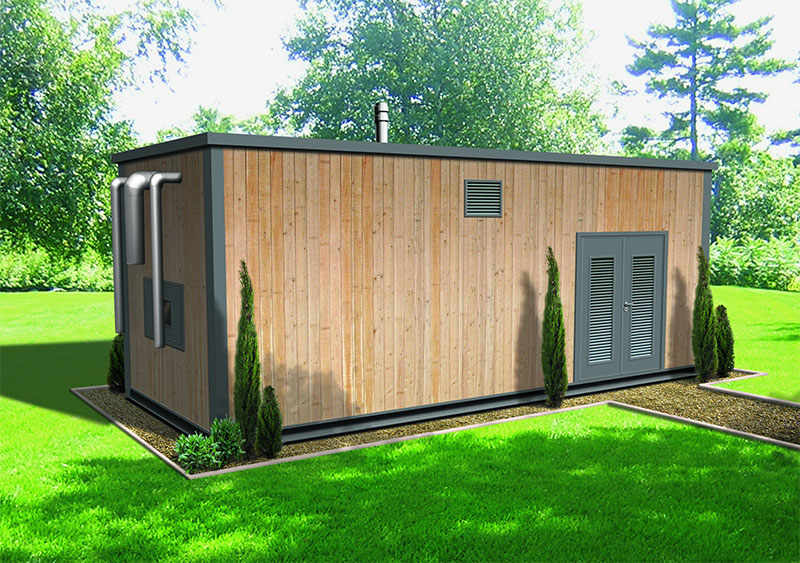

Heat Pod

Our high-quality, customisable, all-in-one biomass package, the Heat Pod, offers clients an attractive solution to their heating needs.

Able to be tailored for each individual project’s requirements, from boiler size to an attractive wood cladding finish, this packaged plant room includes an integral wood store and all necessary mechanical and electrical parts installed.

heat-pod
Technical Information
  • Heating output range
  • 60kW to 500kW
  • Fuel Transport
  • Integrated: Suitable for the chosen wood fuel
  • Fuel Storage
  • Integrated within the Heat Pod
  • Finish
  • Kingspan or wooden cladding
Technical Information

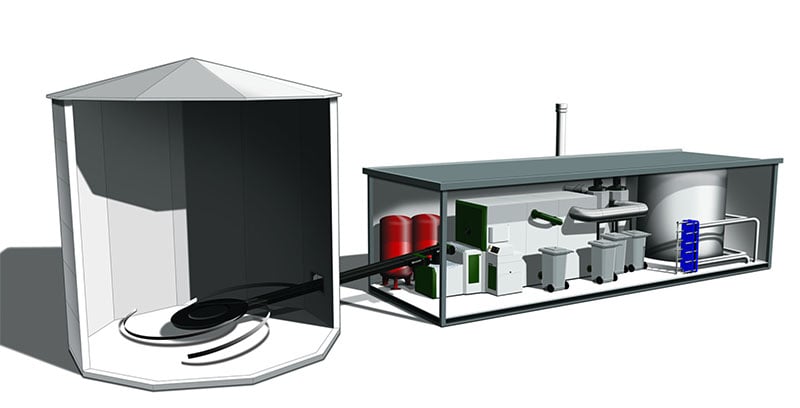

Heat Hub

For large heating requirements, and therefore large wood fuel demands, the Heat Hub provides a compact external solution.

The biomass boiler, ash bins, buffer vessel and all additional parts are installed within the packaged plant room whilst the fuel storage is situated externally. The wood fuel, be it pellet or chip, is transported from the chosen silo or hopper into the energy centre via an auger.

heat-hub
Technical Information
  • Herz Range
  • 200kW to 1,500kW
  • Fuel Transport
  • Auger from external fuel store into packaged plant room
  • Fuel Storage
  • External: Options include an octagonal steel hopper and cylindrical silo
  • Finish
  • Kingspan or wooden cladding
Technical Information

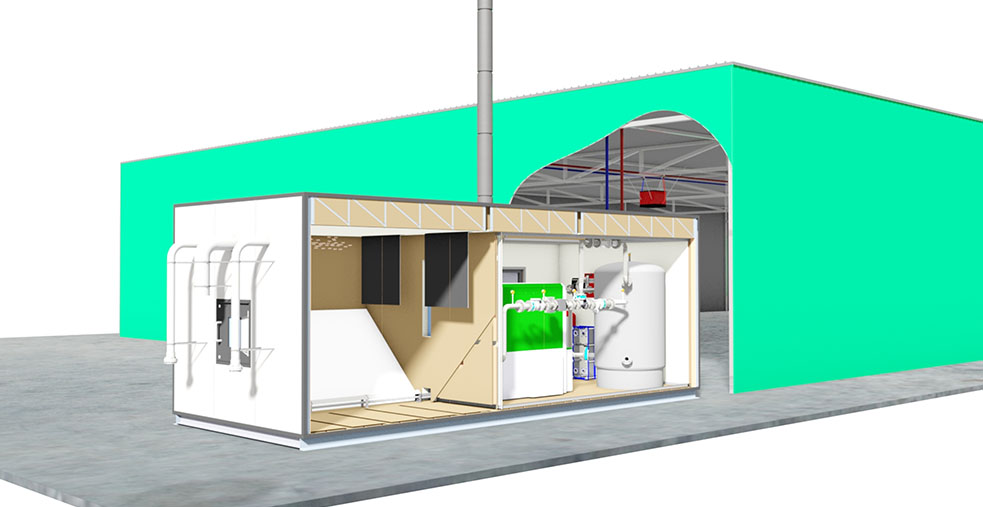

Custom Pod

For very large heating requirements the off-the-shelf options don’t always work. We can therefore design a pod to suit the site. The Custom Pods maximum size is 12x12m so there are a huge range of options

custom-pod-1
Technical Information
