Providing A Bio-Secure And Efficient Method For Waste Solution

Dealing with waste is not something that can be delayed, so trusting your waste management solution is paramount. Myriad have partnered with Waste Spectrum to offer first-class engineering support and an all-round after-sales service to customers.

Waste Spectrum Incineration Systems provide cutting-edge static and mobile incinerators to businesses across the planet. Designed, engineered, and manufactured in Worcestershire, Waste Spectrum incinerators provide quality waste disposal solutions to those in the farming, medical and general waste industries.

By pairing reliable incinerators with advice from trained engineers providing expert support, be confident that your waste management solutions are efficient as possible.



There are many models of agri incinerators and our team can recommend

Here are 3 of the most popular models:

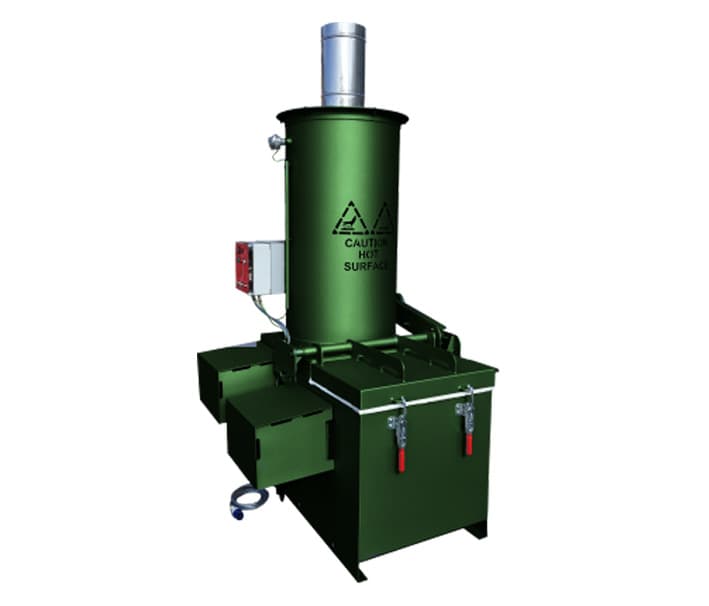

Volkan 150

The Volkan 150 is a smaller capacity incinerator, making it ideal for small scale commercial operations. This machine is best used for the disposal of poultry, veterinary usage, and other small animal waste. Due to it’s low-capacity status, the Volkan 150 also requires no planning permission, which is beneficial to those looking for a quick solution.

Key features of this incinerator include:

  • Easy to operate due to being smaller scale.
  • Static and mobile options available.
  • Minimal heat loss due to low thermal mass linings.
  • Easy access via a counterbalance lid.
  • Burns up to 50kgs per hour.
incinerator-volkan-150--
Technical Information
  • Burn Rate
  • Up to 50kg/hr
  • Front/Top Load
  • Top
  • Static Operational Dimensions (LxWxH)
  • 1.4 x 1.4 x 2.8 m *inc Standard Stack
  • External Height - Static
  • 2751 mm *inc. Stack
  • Weight
  • 0.826 Tonne *estimated
  • Concrete Pad Size (L x W)
  • 3.5 x 3.5 m *recommended
  • Fuel Consumption Diesel
  • 4 - 6 LPH *est during main burn
  • Fuel Consumption LPG
  • 5 - 8 LPH *est during main burn
  • Fuel Consumption Nat Gas
  • 4 - 6 m³/h *est during main burn
  • Metal Hearth
  • Optional
  • Load Door Opening (Width x Height / Depth)
  • 625 x 380 mm *area
  • Chamber Size (LxWxH)
  • 0.7 x 0.6 x 0.6 m
  • Chamber Load Volume
  • 0.17 m³
  • Chamber Load Capacity
  • 100 kg
  • No. Main Burners
  • 1
  • No. Secondary Burners
  • 1
  • Burner Output kW
  • 94 kW *heat
  • Electric Consumption
  • 0.2 kW *electric
Technical Information

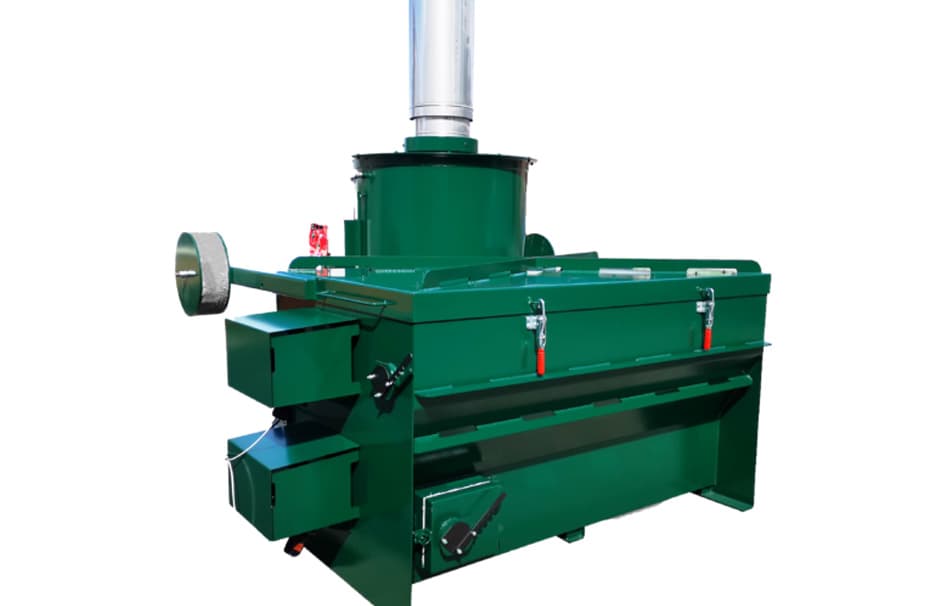

Volkan 450

The Volkan 450 has been designed and manufactured for the poultry industry. This medium capacity incinerator can manage low and high-capacity throughput, which makes it a popular choice for waste disposal. The Volkan 450 requires no planning permission for farm or industrial usage, however, this model can be supplied as a high-capacity machine if required, subject to local planning regulations.

Key features of this incinerator include:

  • Easy to operate with full training provided.
  • Market leading unique hearth bar technology allows for fast incineration.
  • Low running costs due to PLC timer controls.
  • 50kg per hour burn rate or above (depending on local regulation).
  • Top loading design for easy access via a counterbalance lid.
incinerator-volkan-450-
Technical Information
  • Burn Rate
  • Up to 50 kg/hr
  • Front / Top Load
  • Top
  • Static Operational Dimensions (LxWxH)
  • 3.4 x 3.0 x 3.3 m *inc Standard Stack
  • External Height - Static
  • 3340 mm *inc. Stack
  • Weight
  • 3.4 Tonne *estimated
  • Concrete Pad Size (L x W)
  • 5.4 x 5.0 m *recommended
  • Fuel Consumption Diesel
  • 8 - 12 LPH *est during main burn
  • Fuel Consumption LPG
  • 11 - 18 LPH *est during main burn
  • Fuel Consumption Nat Gas
  • 8 - 12 m³/h *est during main burn
  • Hearth Bars
  • 7/9/11
  • Load Door Opening (Width x Height/Depth)
  • 2148 x 1060 mm *area
  • Chamber Size (LxWxH)
  • 2.1 x 1.1 x 0.5 m
  • Chamber Load Volume
  • 0.91 m³
  • Chamber Load Capacity
  • 510 kg
  • No. Main Burners
  • 2
  • No. Secondary Burners
  • 1
  • Burner Output
  • 197 kW *heat
  • Electric Consumption
  • 0.35 kW*electric
Technical Information

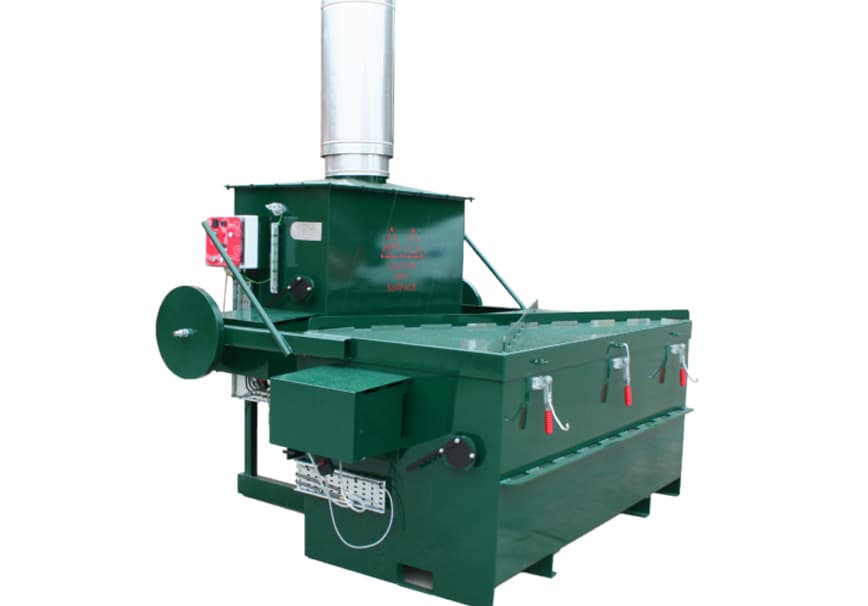

Volkan 750

The Volkan 750 is a large capacity, highly efficient, and practical incinerator. This product has become an established incinerator for larger scale sites, such as pig farms, due to the main chamber being able to take an average sow. Offering a quick and capable disposal method, the Volkan 750 offers a top loading function for efficient waste disposal. This incinerator also offers the benefit of a low-capacity status that requires no planning permission.

Key features of this incinerator include:

  • Minimal heat loss due to thermal mass linings.
  • Temperature controlled pulse fired burners for optimal efficiency.
  • Low running costs due to PLC timer controls.
  • Maximized thermal efficiency due to ability to load while in operation.
  • Easy to operate with full training provided.
incinerator-volkan-750-
Technical Information
  • Burn Rate
  • Up to 50 kg/hr
  • Front / Top Load
  • Top
  • Static Operational Dimensions (LxWxH)
  • 3.2 x 2.3 x 3.1 m
  • External Height - Static
  • 3101 mm *inc. Stack
  • Weight
  • 2.8 Tonne *estimated
  • Concrete Pad Size (L x W)
  • 5.2 x 4.3 m *recommended
  • Fuel Consumption Diesel
  • 7 - 10 LPH *est during main burn
  • Fuel Consumption LPG
  • 10 - 15 LPH *est during main burn
  • Fuel Consumption Nat Gas
  • 7 - 10 m³/h *est during main burn
  • Hearth Bars
  • Optional
  • Load Door Opening (Width x Height/Depth)
  • 2192 x 892 mm *area
  • Chamber Size (LxWxH)
  • 2.2 x 0.9 x 0.8 m
  • Chamber Load Volume
  • 0.84 m³
  • Chamber Load Capacity
  • 470 kg
  • No. Main Burners
  • 2
  • No. Secondary Burners
  • 1
  • Burner Output
  • 167 kW *heat
  • Electric Consumption
  • 0.3 kW *electricity
Technical Information
