Residential Battery Systems
Residential Battery Systems
It’s time to start powering your home using renewable energy solutions.
Homeowners and landlords should make controlling their energy use a priority, especially as the UK is aiming for net-zero emissions. Investing in solutions such as battery storage and other renewables will help reduce costs while doing our part to protect the environment.
Home-energy storage systems can help reduce your electricity usage from the grid and lower your utility bills. For off-grid homes, a battery will provide a reliable power source while also decreasing dependence on fossil fuels.
Solar battery packages are designed to store energy when it’s available, such as from solar panels during the day, and use it whenever you need it. Changes in energy tariffs will give you even more control over your electricity bill, allowing you to store energy in your battery and use grid energy only when it is cheaper.
All residential properties can benefit from this storage solution. Under the auto mode, will store surplus renewable energy onto the battery and discharge battery to supply power when renewable energy is at a minimum.
This solution’s key features include:
• A-C Coupling for retrofitting to existing PV systems or Hybrid for new PV installations
• Modular design - Built-in battery with ability to be extended at a later date
• Easy installation and low maintenance
• 24/7 monitoring
SM3 : 1ph A/C Coupled
A/C coupled sor adding to existing PV systems or for making best use of low night time tariffs.

- Max. AC Output Power
- 3 kW
- Max. AC Input Power from PV panels or directly from grid
- 3.6 kW
- Base Battery Storage
- 2.9 kWh
- Battery Expansion
- 2.9 kWh each. Possible to add up to 5 additional units to max. 14.5 kWh
- Dimension (W x D x H)
- 610 x 236 x 625 mm
- Weight
- 45 kg
- Warranty
- 5 Year Product Warranty, 10 Year Battery Warranty
- Max. AC Input Current
- 13 A
- Nominal AC Voltage : Input / Output
- Single phase 230V / 230V
- Max. Charging/Discharging Current
- 60 A
- Cycle Life
- 10,000 cycles

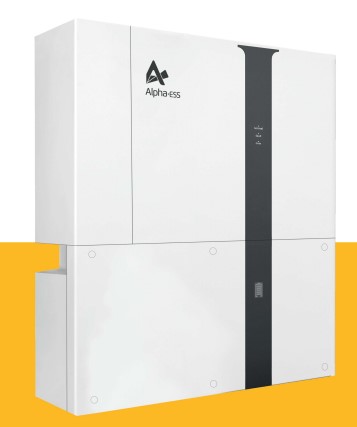

SM3+ : 1ph A/C Coupled
A/C coupled sor adding to existing PV systems or for making best use of low night time tariffs.

- Max. AC Output Power
- 5 kW
- Max. AC Input Power from PV panels or directly from grid
- 6 kW
- Base Battery Storage
- 5.04 kWh
- Battery Expansion
- 5.04 kWh each. Possible to add up to 5 additional units to max. 25.2 kWh
- Dimension (W x D x H)
- TBC
- Weight
- TBC
- Warranty
- 5 Year Product Warranty, 10 Year Battery Warranty
- Max. AC Input Current
- 13 A
- Nominal AC Voltage : Input / Output
- Single phase 230V / 230V
- Max. Charging/Discharging Current
- 60 A
- Cycle Life
- 10,000 cycles

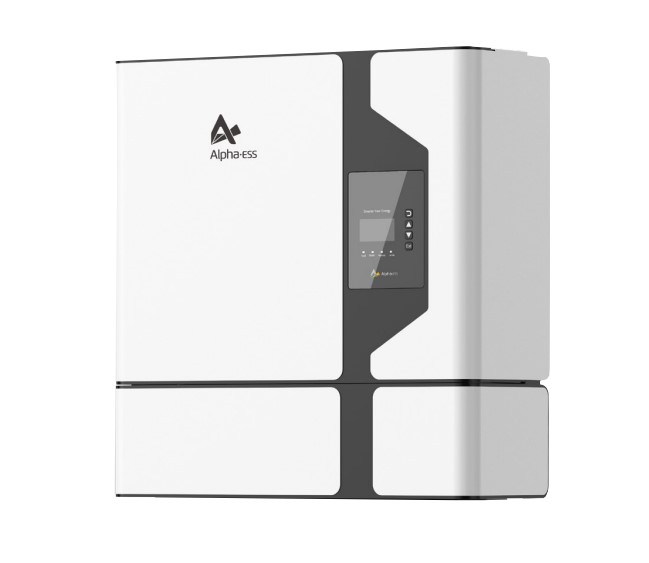

SM5 : 1ph Hybrid
Hybrid inverters are used for new PV installations.

- Max. AC Output Power
- 5 kW
- Max. AC Input Power from PV panels or directly from grid
- 6.6 kW
- Base battery storage
- 0 kWh. Need at least 2 battery expansions to operate.
- Battery Expansion
- 5.7 kWh each. Possible to add up to 10 units to max. 57 kWh
- Dimension (W x D x H)
- TBC
- Weight
- TBC
- Warranty
- 5 Year Product Warranty, 10 Year Battery Warranty
- Max. AC Input Current
- 13 A
- Nominal AC Voltage : Input / Output
- Single phase 230V / 230V
- Max. Charging/Discharging Current
- 60 A
- Cycle Life
- 10,000 cycles

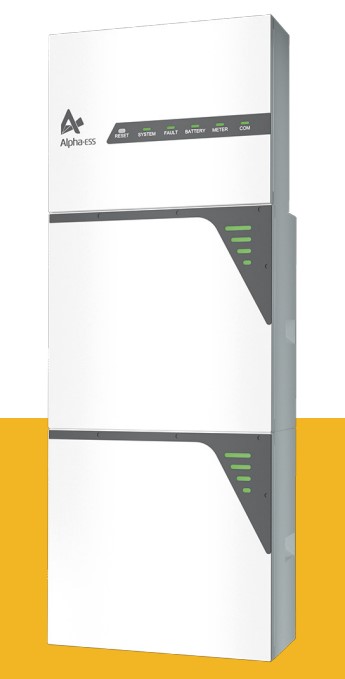

SM6 : 1ph Hybrid
Hybrid inverters are used for new PV installations.

- Max. AC Output Power
- 6 kW
- Max. AC Input Power from PV panels or directly from grid
- 9 kW
- Base battery storage
- 0 kWh. Need at least 2 battery expansions to operate.
- Battery Expansion
- 8.2 kWh each. Possible to add up to 10 units to max. 82 kWh
- Dimension (W x D x H)
- TBC
- Weight
- TBC
- Warranty
- 5 Year Product Warranty, 10 Year Battery Warranty
- Max. AC Input Current
- 13 A
- Nominal AC Voltage : Input / Output
- Single phase 230V / 230V
- Max. Charging/Discharging Current
- 60 A
- Cycle Life
- 10,000 cycles

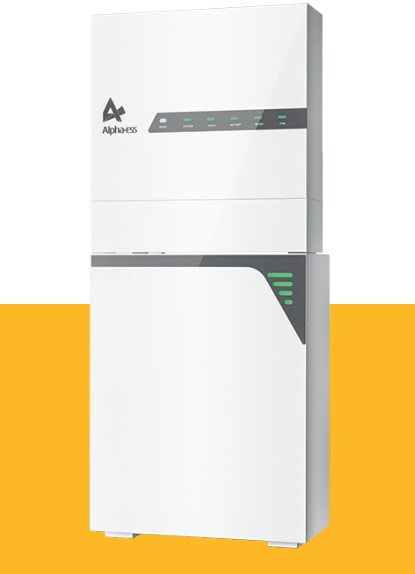

SM10 : 3ph Hybrid
Hybrid inverters are used for new PV installations.
The SM10 solution is the first true three-phase Energy Storage System. Suitable for indoor and outdoor use. Lithium iron phosphate system.

- Max. AC Output Power
- 10 kW
- Max. AC Input Power from PV panels or directly from grid
- 16 kW
- Base battery storage
- 0 kWh. Need at least 2 battery expansions to operate.
- Battery Expansion
- 8.2 kWh each. Possible to add up to 10 units to max. 82 kWh
- Dimension (W x D x H)
- 610 x 236 x 605 mm
- Weight
- 40 kg without battery expansions
- Warranty
- 5 Year Product Warranty, 10 Year Battery Warranty
- Max. AC Input Current
- TBC
- Nominal AC Voltage : Input / Output
- Three phase 1,000V / 600V
- Max. Charging/Discharging Current
- 25 A
- Cycle Life
- 10,000 cycles
