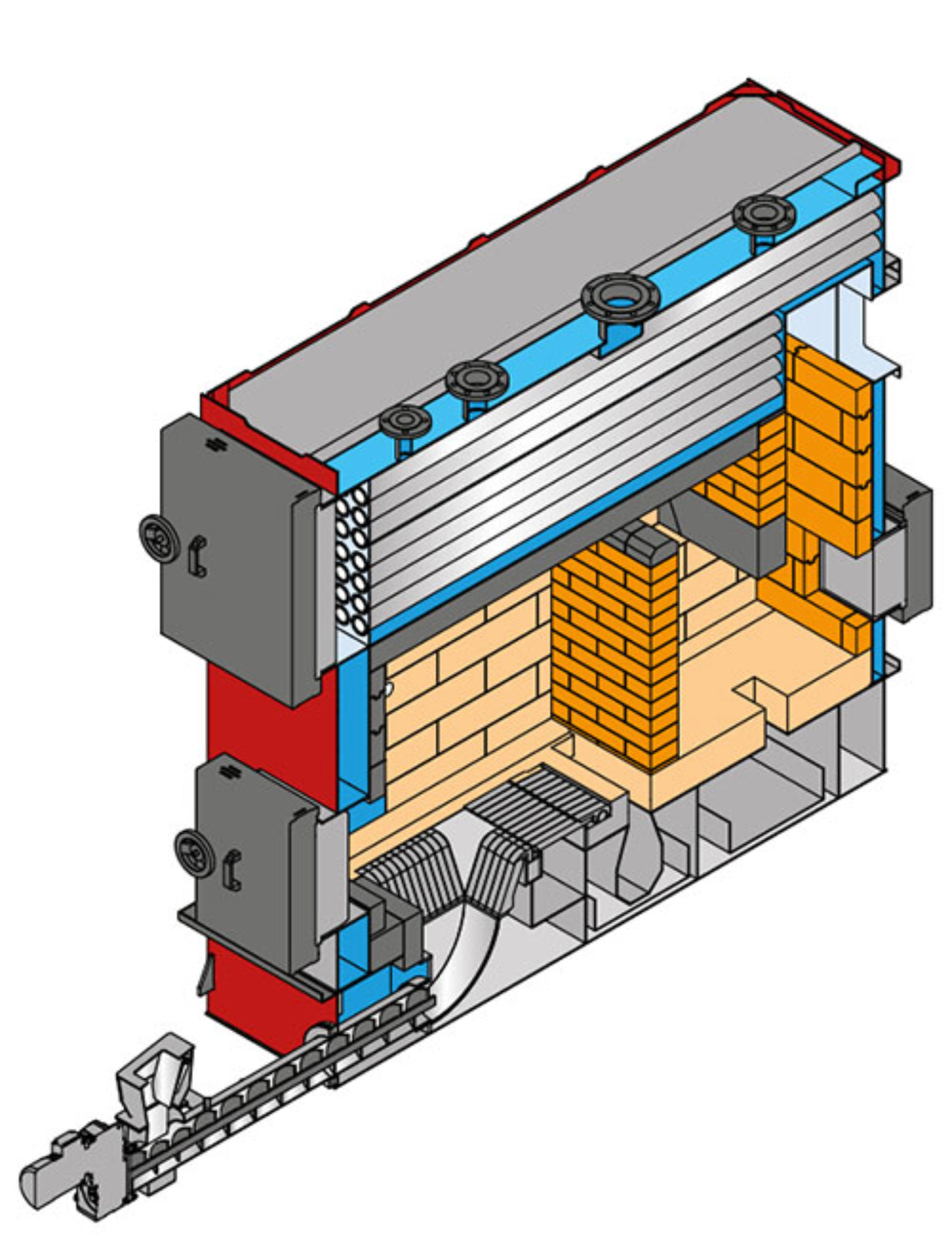

Fixed grate, underfed hearth
Combustion with hearth and a rear grate section with hinged cast steel elements. Ash trays are integrated and there is an optional auto de-ashing with auger.
Completely refractory lined and stoichiometrically designed primary and secondary combustion air zones.
Technical Information
- Max. fuel water content
- Up to M30
- Max. fuel ash content <1,5%
- <1,5%
- Typical Application
- Industrial, public & commercial buildings
- Available
- From 100 kW nominal capacity
Downloads

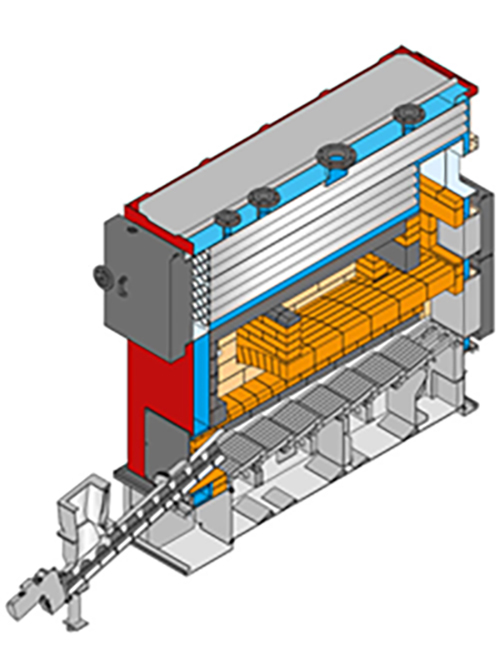

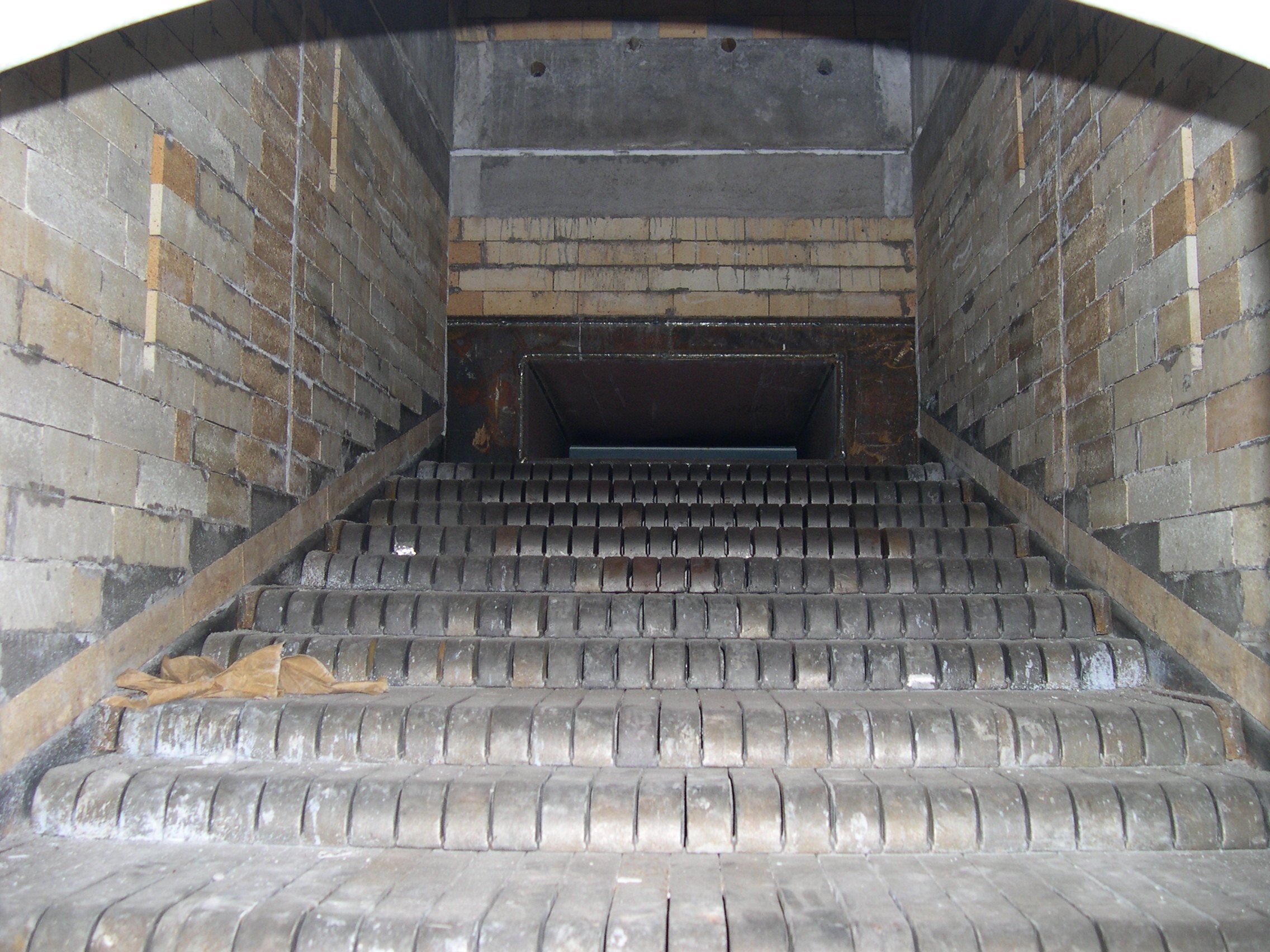

Moving stepped grate for moist fuels
Combustion with hydraulically or electro-mechanically operated stepped grate, for combustion of dry fuels with high ash content.

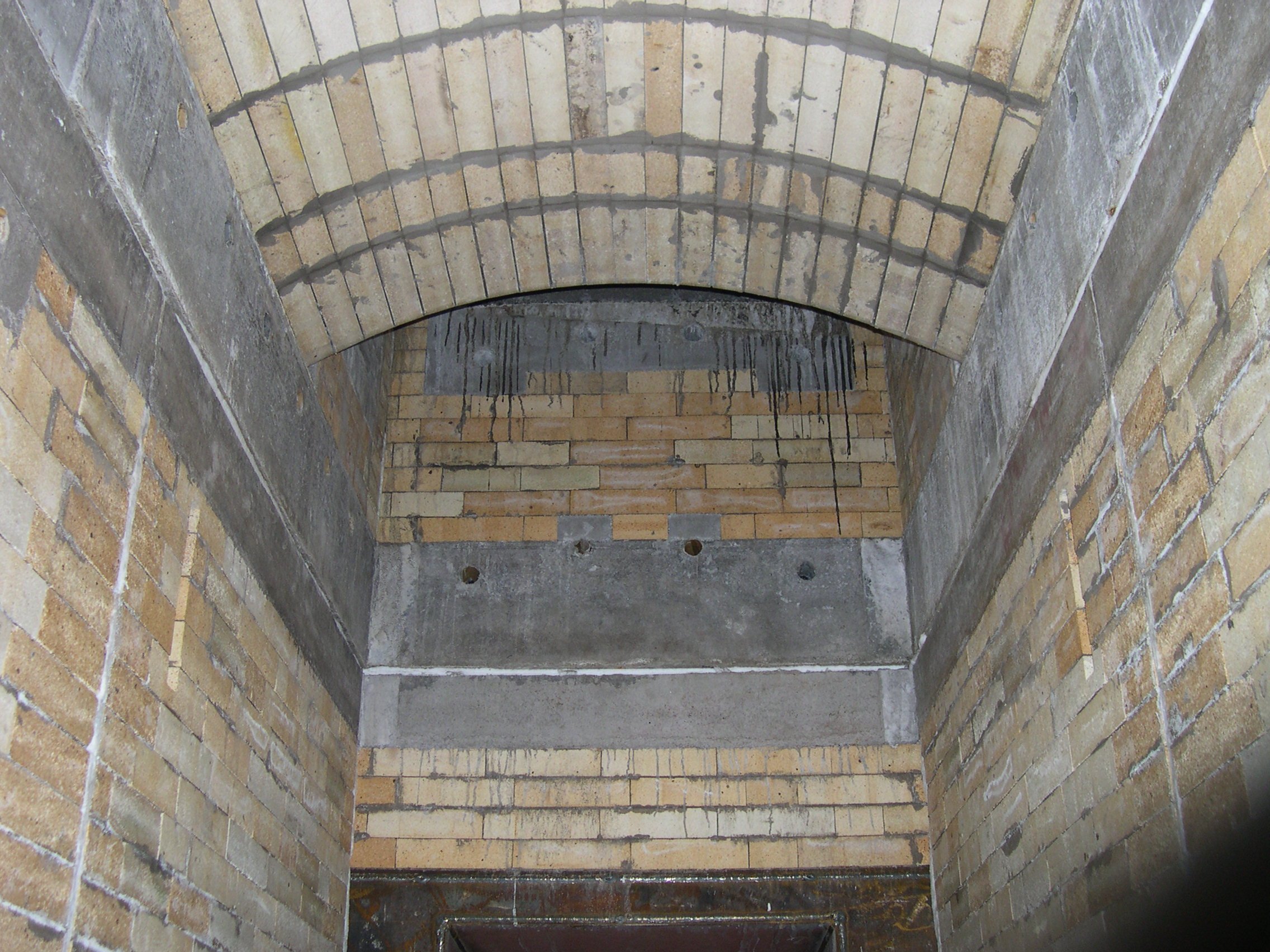

Fully automatic de-ashing of the combustion unit with ash scraper below grate and ash auger. Completely refractory lined combustion chamber.
Stoichiometrically designed primary and secondary combustion air zones. Alternatively with auger or hydraulic infeed.
Technical Information
- Max. fuel water content
- Up to M40 (up to M50 with air preheater)
- Max. fuel ash content
- <7%
- Typical Application
- Combustion units for industry, district and local heating etc
- Available
- From 300 kW nominal capacity
Moving stepped grate for wet fuels
Combustion unit with hydraulically or electro-mechanically operated stepped grate, for combustion of wet materials with high ash content.
Fully automatic de-ashing of the combustion unit with ash scraper below grate and ash auger. Completely refractory lined and Stoichiometrically designed primary and secondary combustion air zones.
Alternatively with auger or hydraulic infeed.
Technical Information
- Max. fuel water content
- Up to M50 (up to M60 with preheater)
- Max. fuel ash content
- <7%
- Typical Application
- Combustion units for industry, district and local heating
- Available
- From 300 kW nominal capacity
