Commercial & Industrial Battery Systems
Commercial And Industrial Battery Solutions
As the global move towards renewable energy continues, finding a battery solution that works for your business is paramount.
Installing battery storage systems on-site allows you to store and discharge electricity as needed.
Businesses can now better plan and manage their energy needs both for the present and the future using industrial and commercial battery solutions.

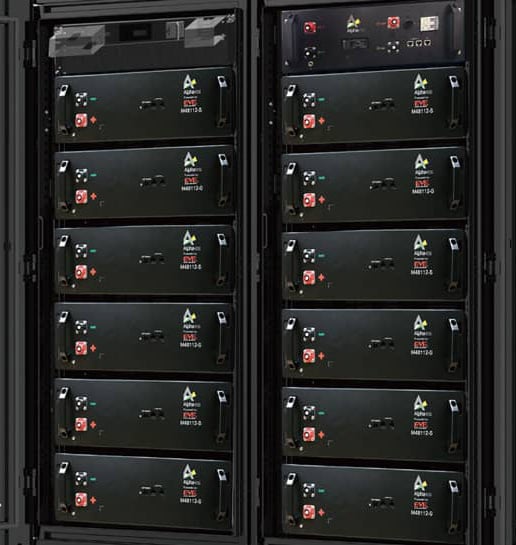

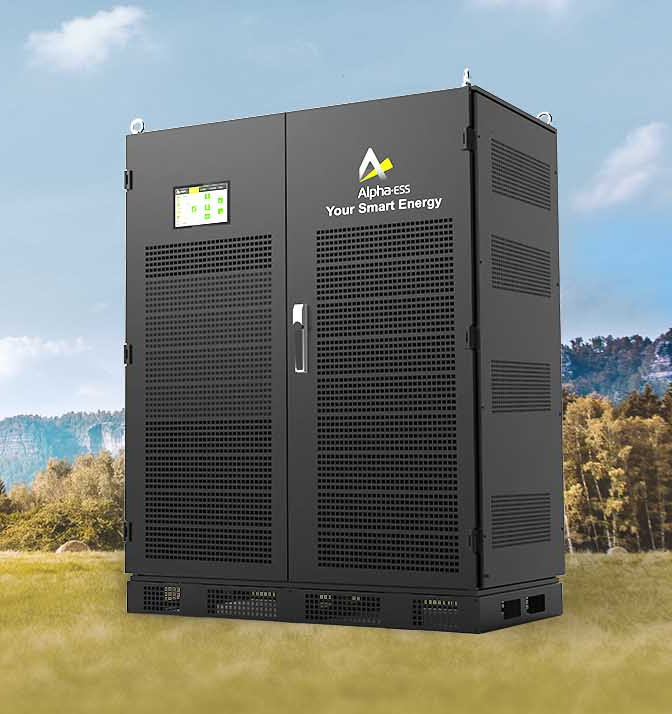

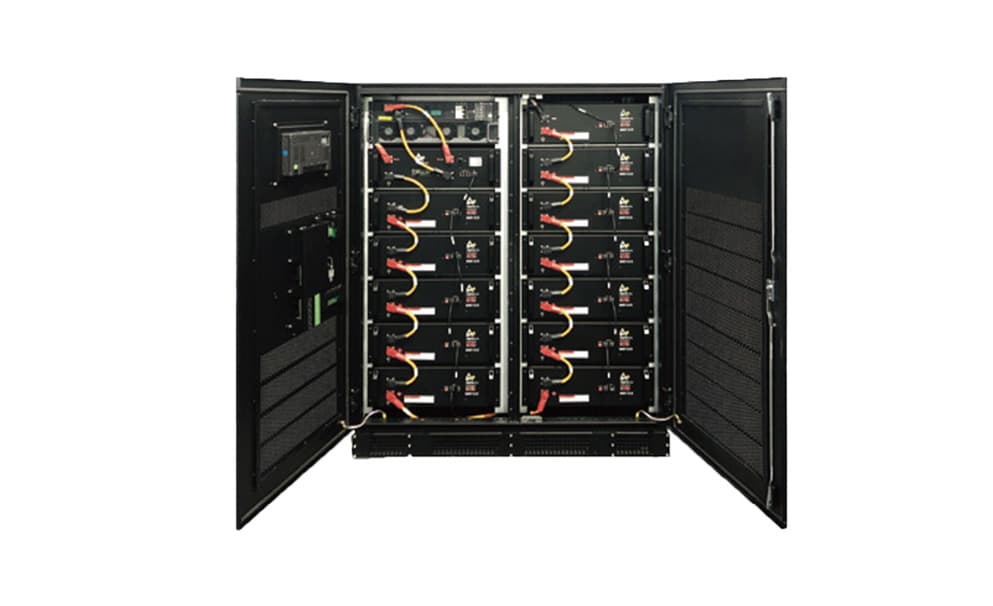

Storion Series T30
This Energy Storage System (ESS) has a German designed modular system, is AC-coupled and retrofit compatible with local interface. This modular design is low maintenance and offers easy installation properties.
What are the key features of Storion T30?
• Easy installation
• Low maintenance
• Modular design
• Local interface offers 24/7 monitoring
• AC-Coupling
%20(1).jpg)
- Nominal Output Power
- 30 kW
- Max. AC Input Power
- 30 kW
- Capacity Range
- 28.7 ~ 68.8 kWh (90% DoD)
- System Cabinet Dimension (W x D x H)
- 1180 x 700 x 1500 mm
- System Cabinet Weight
- 170 kg
- Warranty
- 3 Year Product Warranty, 10 Year Performance Warranty
- Maximum No. of Units
- Max. AC Input Current
- 43.3 A
- Nominal AC Input/ Output Voltage
- 400 V/ 400 V
- Max. Charging/Discharging Current
- 90 A
- Max. Charging/Discharging Power
- 30 kW
- Cycle Life
- ≥ 6000

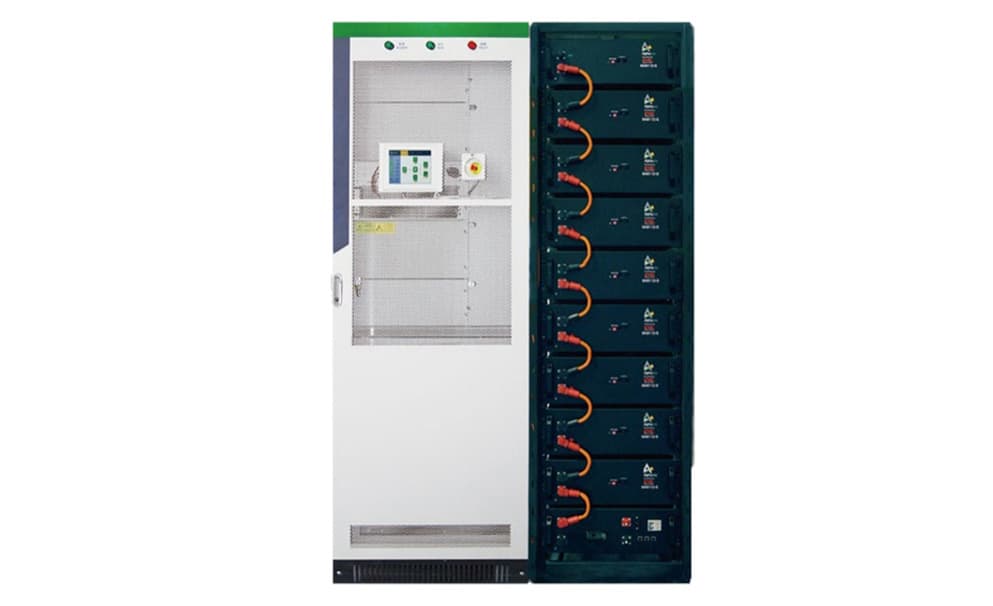

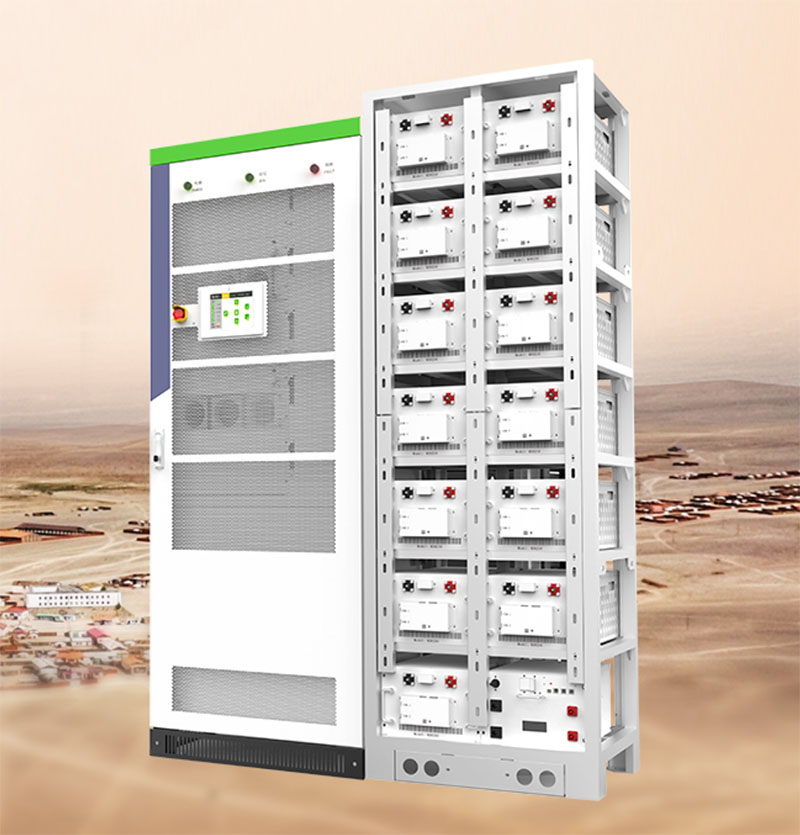

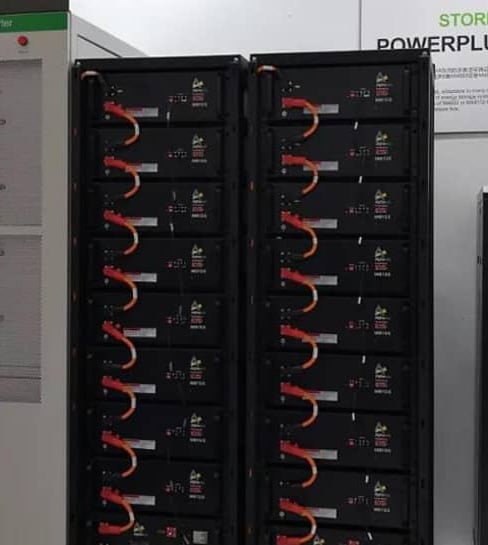

Storion T50/ T100
This easy to install commercial and industrial Energy Storage System can be used as an uninterrupted power supply and off-grid. The modular design offers 24/4 monitoring and benefits from integrated outdoor proof container solutions.
What are the key features of Storion T50 / T100?
• Easy installation
• Low maintenance
• Modular design
• Local interface offers 24/7 monitoring
• UPS ability
• Off-grid ability

- Nominal Output Power
- 50 kW/ 100kW
- Max. PV Input Power
- 110 kW/ 220 kW
- Capacity Range
- 28.7 kWh ~ 1032.2 kWh (90% DoD)
- Warranty
- 3 Year Product Warranty, 10 Year Performance Warranty
- Dimension (W x D x H)
- 800 mm x 800 mm x 2160 mm
- Weight
- 520 kg/ 750 kg
- Max. PV Input Current
- 110 A/ 220 A
- PV Input Voltage Range
- 520 V ~ 900 V
- Max. fuel water content
- Up to M30
- Battery Voltage Range
- 250 V ~ 520V
- Max. Charge/Discharge Current
- 150 A/ 300 A
- Cycle Life
- ≥ 6000
